Product Overview

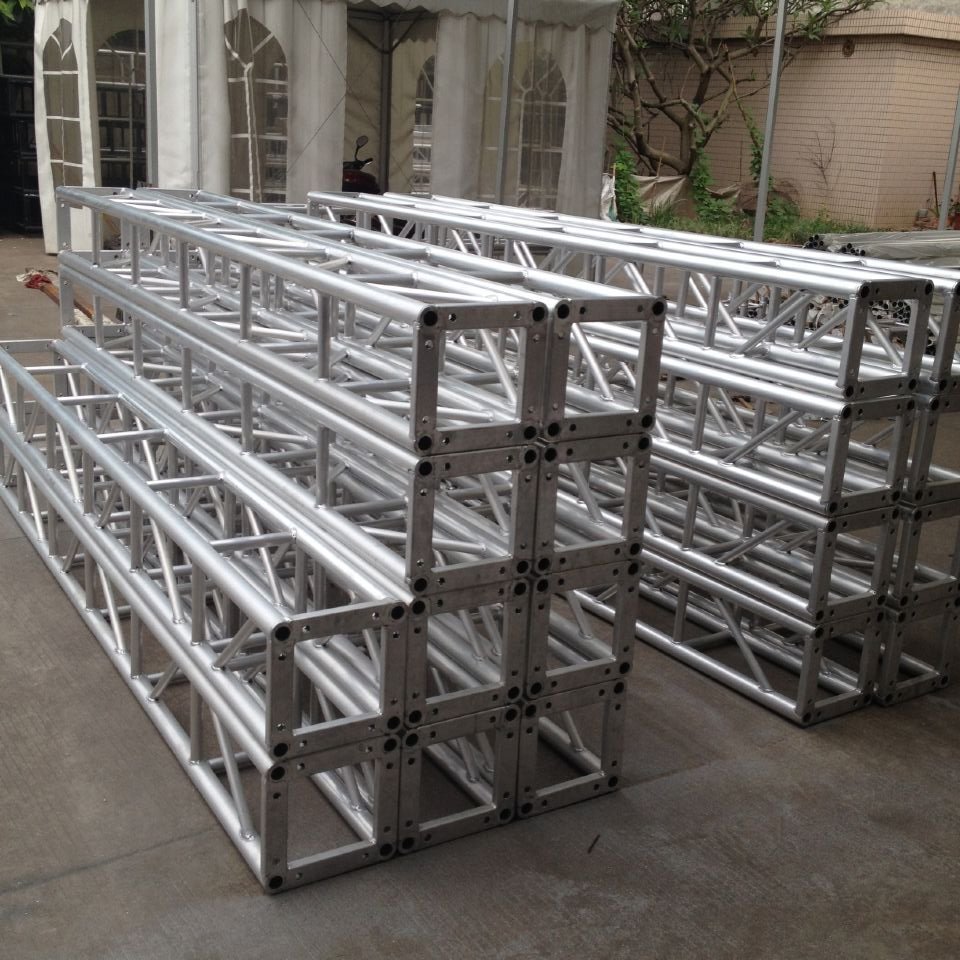

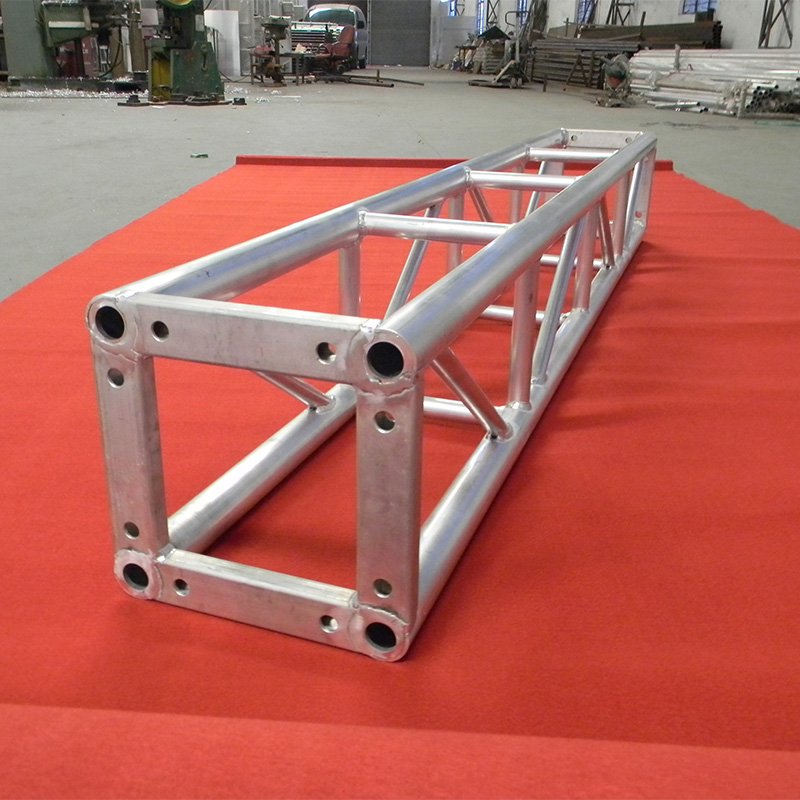

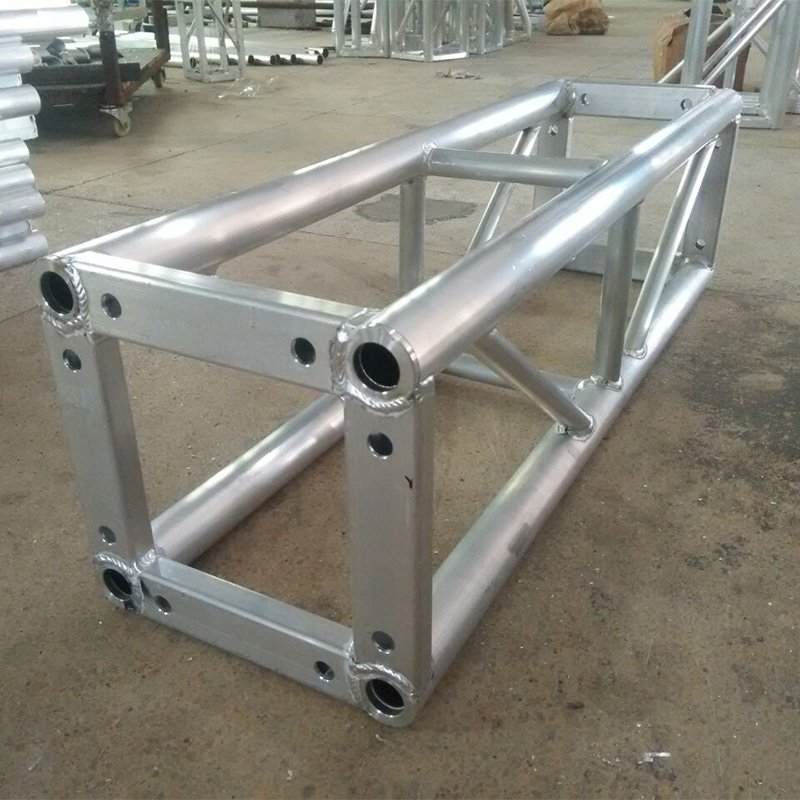

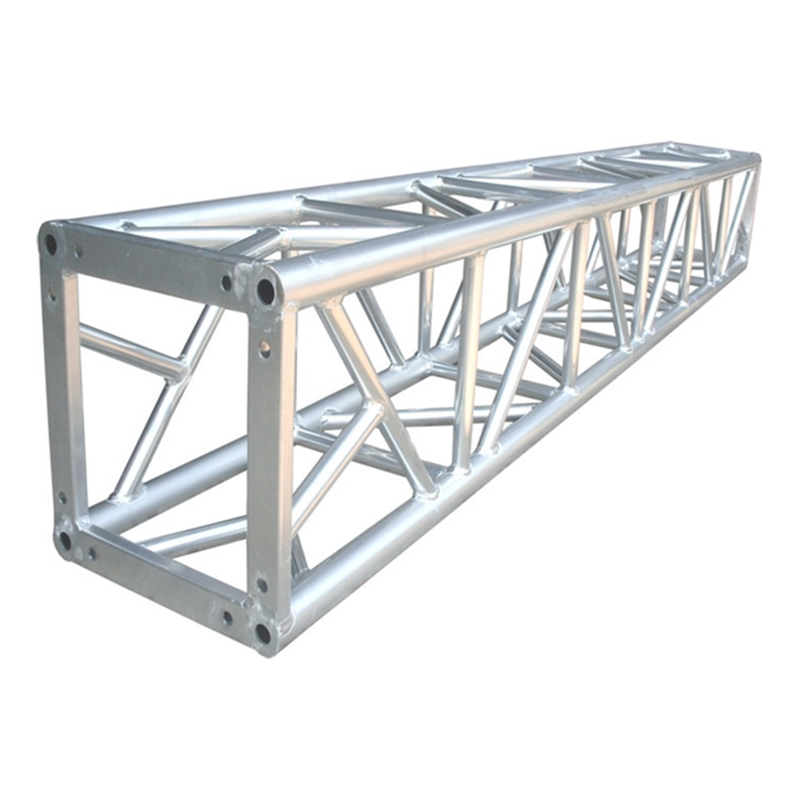

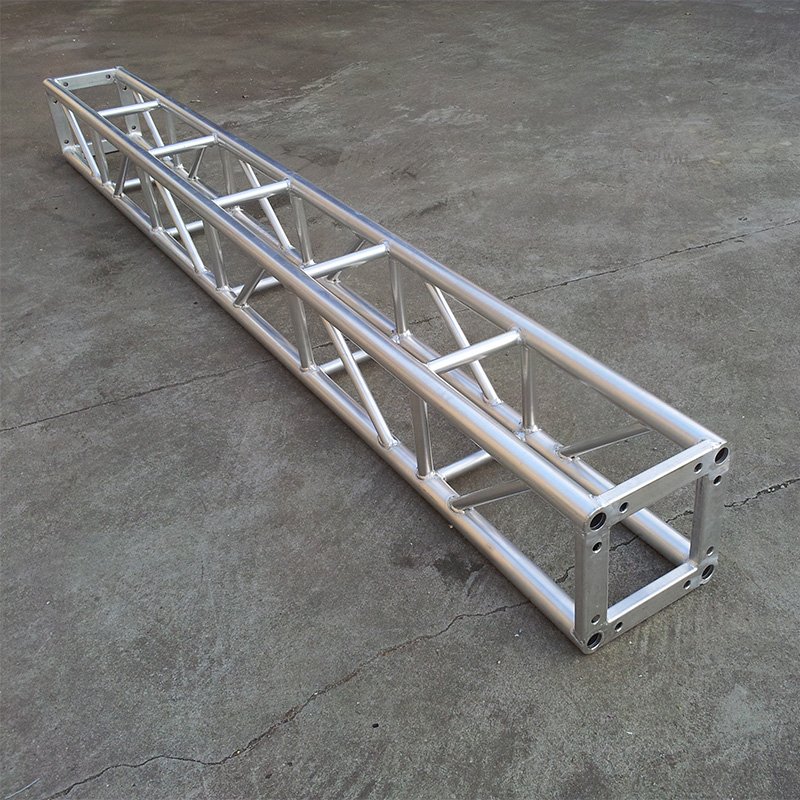

Square Bolt Truss is a modular space span structure assembled with aluminum tubes and bolt connections. Made from high-performance 6061-T6 / 6082-T6 aluminum alloy, it adopts triangular unit force-bearing design. The truss features excellent torsional resistance and high bending stiffness, with neat flat frame which is easier for on-site operation compared with round truss. It is widely used for event backdrops, exhibition booths and stage overhead support. CE, SGS and TUV certified, full customization service is available for special project demands.
Key Features
High-Grade Aluminum Alloy Material
Fabricated from 6061-T6 / 6082-T6 aluminum alloy, lightweight, corrosion-resistant and durable for repeated indoor and outdoor use.
Bolt Connection Node
Fixed by bolts for stable joint connection. Overlapping shear and form centers deliver outstanding torsional resistance and bending stiffness.
Triangular Force-bearing Structure
Straight bars bear tension or pressure, maximizing material utilization, saving raw material and reducing overall structural weight.
Flat Frame Design
Flat profile compared with round truss, convenient for workers to install and adjust on site, mainly suitable for backdrop construction.
Rich Size & Color Options
Available sizes from 200×200mm to 600×1000mm; standard lengths: 0.5m,1.0m,2.0m,3.0m,4.0m. Silver, black, blue, green and other custom colors are optional.
Certified & Customizable
CE, SGS, TUV certified; all dimensions can be customized.
Technical Parameters
Material: aluminum alloy 6061-T6/6082-T6
Main Tube: 50×3.0mm / 50×2.0mm
Vice Tube: 50×2.0mm / 30×2.0mm / 25×2.0mm
Brace: 25×2.0mm
Connection Type: Bolt
Color: Silver, black, blue, green and custom colors
Optional Size: 200×200mm – 600×1000mm
Standard Length: 0.5m, 1.0m, 2.0m, 3.0m, 4.0m
Certificate: CE, SGS, TUV
Customization: All dimensions can be customized
Applications
Exhibition booth framework
Event backdrop and photo booth structure
Trade show display frame
Stage lighting and speaker support
Store decoration and advertising display
Why Choose Our Square Bolt Truss?
Superior Mechanical Performance: Good torsional resistance and high bending stiffness, stable under load.
Material Saving & Light Weight: Force evenly distributed on tubes to reduce self-weight while maintaining strength.
User-Friendly On-site Assembly: Flat truss design makes measurement and installation simpler than round truss.
Attractive Visual Effect: Clean and neat overall structure, perfect for commercial exhibition and event backdrop.
Verified Safety Quality: Complete international certificates for project inspection and bidding.
