Product Overview

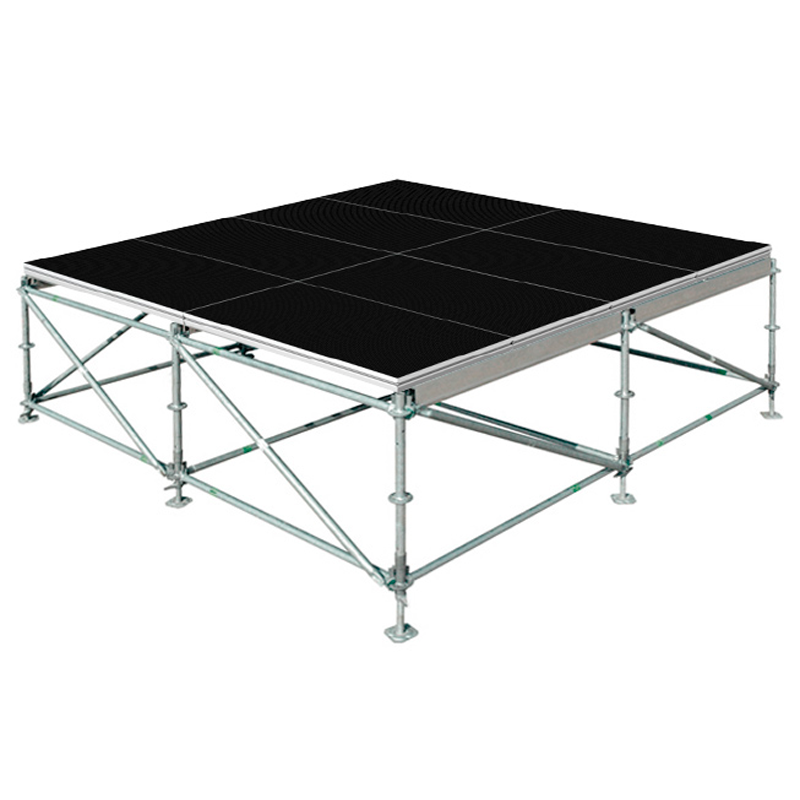

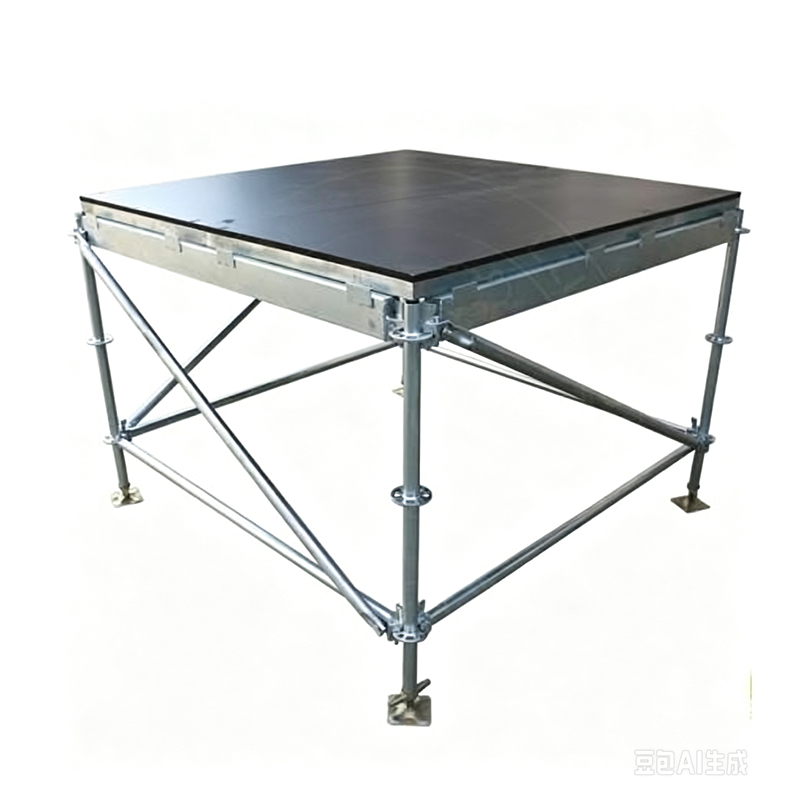

Integrated X Brace Ringlock Layher Stage is a ready-to-use modular ringlock stage unit. Each single stage panel is pre-assembled with built-in X-shaped diagonal cross braces. The frame is hot-dip galvanized steel with ringlock disc nodes. The stage deck is embedded in aluminum edge frame, which greatly improves the overall rigidity of each unit. Single unit can be directly installed without additional diagonal braces. It is the preferred solution for medium & small indoor and outdoor events. CE certified for temporary event structures.
Key Features
Built-in X Cross Braces for Each Unit
Integrated diagonal X braces inside every stage frame. Strong lateral stability, no extra braces required for low-height stage projects, save accessories and installation time.

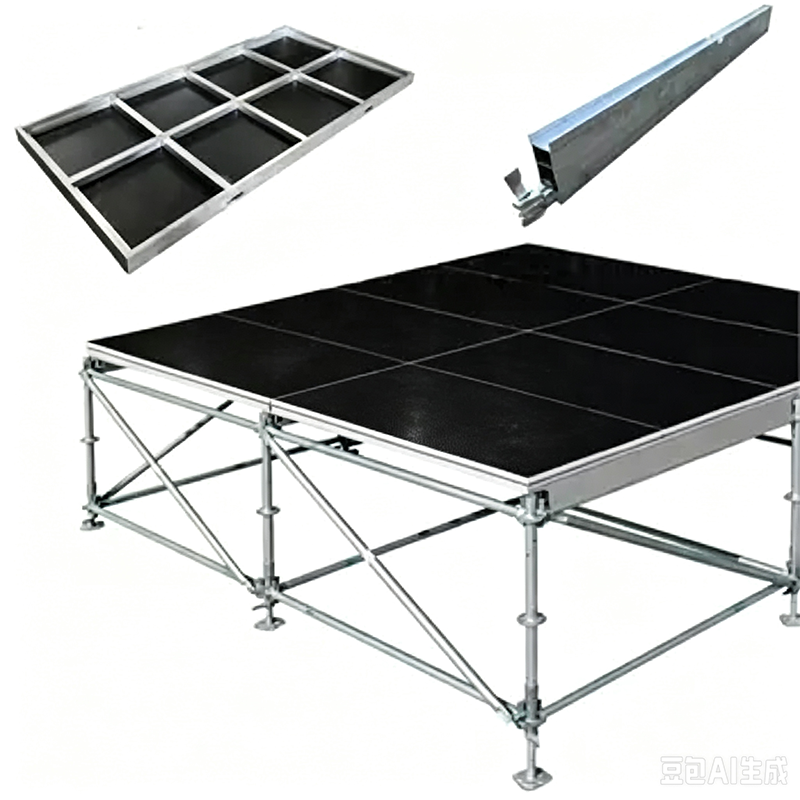

Aluminum Framed Stage Deck
Plywood deck wrapped by aluminum border, effectively protect panel edge from damage during transportation and repeated assembly.
Hot-dip Galvanized Ringlock Steel Frame
Q235/Q345 steel tube with hot-dip galvanized finish, anti-rust and durable for repeated use.
Ringlock Wedge Pin Connection
Fast wedge pin locking, simple on-site operation, easy to combine multiple units together.
Adjustable Base Feet
Spindle bases for leveling on slightly uneven ground.
Safety Certificates Available

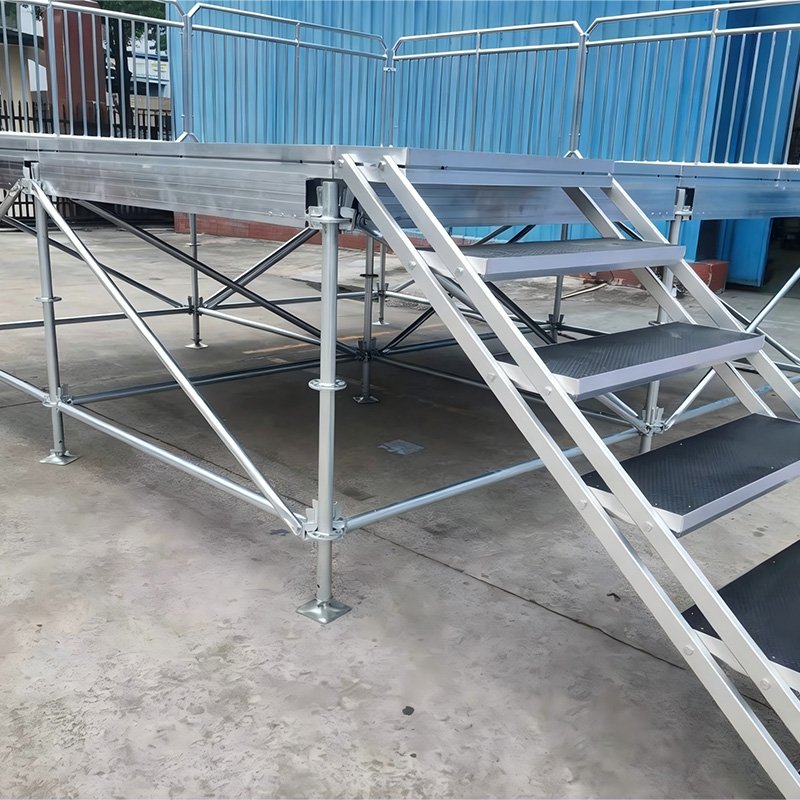

CE certification, matching guardrails and stairs can be supplied on request.
Technical Parameters
Frame Material: Q235 / Q345 Steel Tube
Surface Finish: Hot-dip Galvanized
Deck: Anti-slip Plywood with Aluminum Edge Frame
Standard Unit Size: 1m×2m, 1.22m×2.44m
Connection Type: Ringlock Wedge Lock
Load Capacity: Up to 6kN/m²
Certificate: CE
Customization: Stage size, height and safety accessories can be customized
Applications
Indoor wedding stage
Small & medium live show, theatre performance
Trade fair and auto show platform
Corporate event & product launch stage
Church temporary stage, small outdoor gathering
Why Choose Our Integrated X Brace Ringlock Layher Stage?
Fast On-site Setup: Built-in X braces, single unit can stand stable alone, cut down labor cost and setup time.
Protected Deck Structure: Aluminum frame protects plywood edges, reduce damage during transit.
Compact Unit Design: Suitable for small and medium events, easy to transport and stock.
Good Stability for Low Height: Built-in cross braces effectively resist shaking for low elevation stage.
Flexible Combination: Multiple units can be connected together to expand the stage area as needed.
